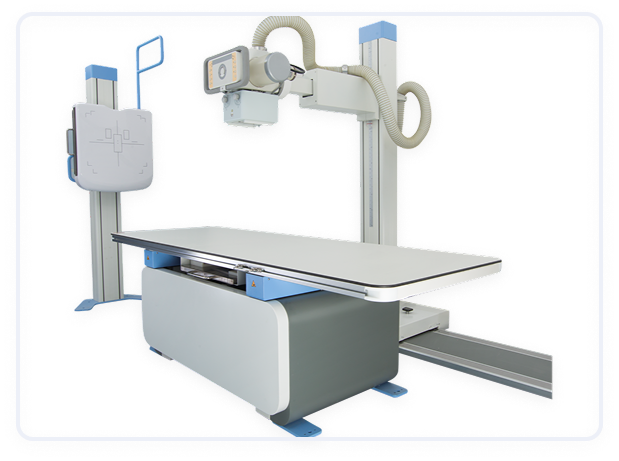

X-Ray Machine

Key Features of an X-Ray Machine

1. X-ray Tube

• The X-ray tube is the core component of the machine that generates the X-rays. It contains a cathode (negative electrode) and anode (positive electrode) that work together to produce the X-rays when electricity flows through the tube.




2. Detector

• The detector captures the X-rays that pass through the body and converts them into an image.




3. Collimator

• The collimator is a device that narrows the X-ray beam to a specific area of interest. This reduces unnecessary exposure to radiation in other parts of the body and ensures more focused imaging.




4. Control Panel

• The control panel is used by the technician to set the exposure parameters, including radiation dose, exposure time, and X-ray energy (kVp), depending on the area being imaged and the patient's size.




5. High-Voltage Generator

• This component provides the high voltage needed to accelerate electrons from the cathode to the anode, generating X-rays.




6. Digital Imaging

• Digital X-ray systems capture images on a digital sensor rather than film. These systems offer benefits such as instant image viewing, the ability to adjust contrast, and easy digital storage for long-term records.




7. Fluoroscopy

• Some X-ray machines include fluoroscopy, which provides real-time, continuous imaging. This is particularly useful in procedures like guiding catheter placements, barium studies, and real-time monitoring of a patient's anatomy during certain interventions.




8. Patient Positioning Equipment

• X-ray machines are often equipped with special positioning tables or arms to position the patient correctly during the imaging process.




9. Radiation Safety Features

• Lead shielding or lead aprons are commonly used in conjunction with the machine to protect both the patient and the technician from unnecessary radiation exposure.




10. Mobile and Stationary Units

• Mobile X-ray machines are portable, allowing for X-ray imaging in emergency rooms, intensive care units (ICUs), or patient rooms without needing to transport the patient to a radiology department.




11. Image Storage and Transmission (PACS)

• Picture Archiving and Communication System (PACS) allows for the digital storage, retrieval, and sharing of X-ray images across different devices and locations.
